Specifications for

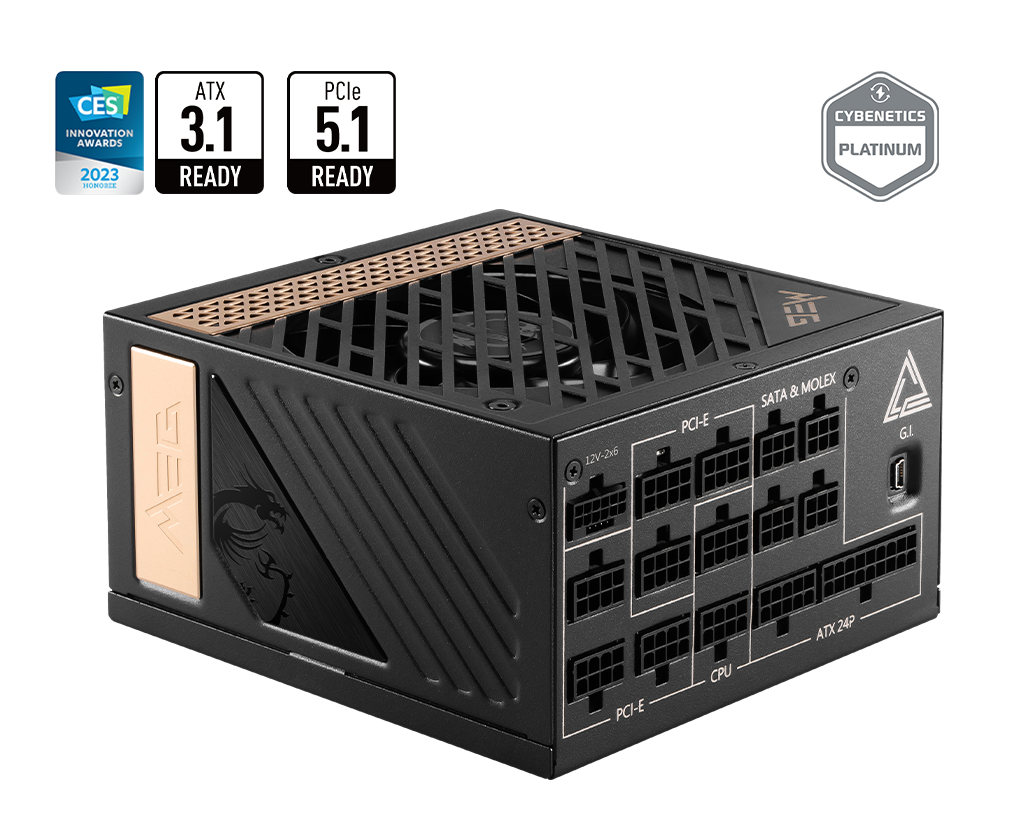

MEG Ai1300P PCIE5
Modular
Modular
Yes (full modular)
Fan Bearing
Fan Bearing
Hydro Dynamic Bearing
Product Name
Product Name
MEG Ai1300P PICE5
PSU Form Factor
PSU Form Factor
ATX
Power Excursion
Power Excursion
2600W (*up to 200% of the PSU's rated power for 100μs)
Power Watt
Power Watt
1300W
Input Voltage
Input Voltage
100-240~
ATX (24 pin)
ATX (24 pin)
1
Input Frequency
Input Frequency
50~60 Hz
EPS (8 pin)
EPS (8 pin)
1
Efficiency Rating
Efficiency Rating
80 PLUS Platinum (up to 92%)
EPS (4+4 pin)
EPS (4+4 pin)
1
PCI-E 5.0 (16 pin)
PCI-E 5.0 (16 pin)
1 (600W)
Fan Size
Fan Size
120 mm
PCI-E (6+2 pin)
PCI-E (6+2 pin)
8
Dimensions (DxWxH)
Dimensions (DxWxH)
160 x 150 x 86 mm
SATA (15 pin)
SATA (15 pin)
16
PFC Type
PFC Type
Active PFC
MOLEX (4 pin)
MOLEX (4 pin)
4
Protection
Protection
OCP / OVP / OPP / OTP / SCP / UVP
FDD (4 pin)
FDD (4 pin)
1
